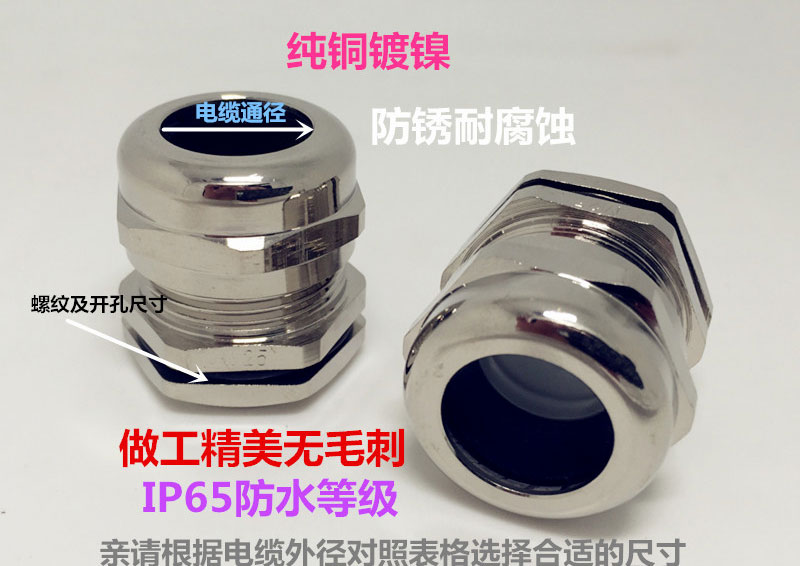

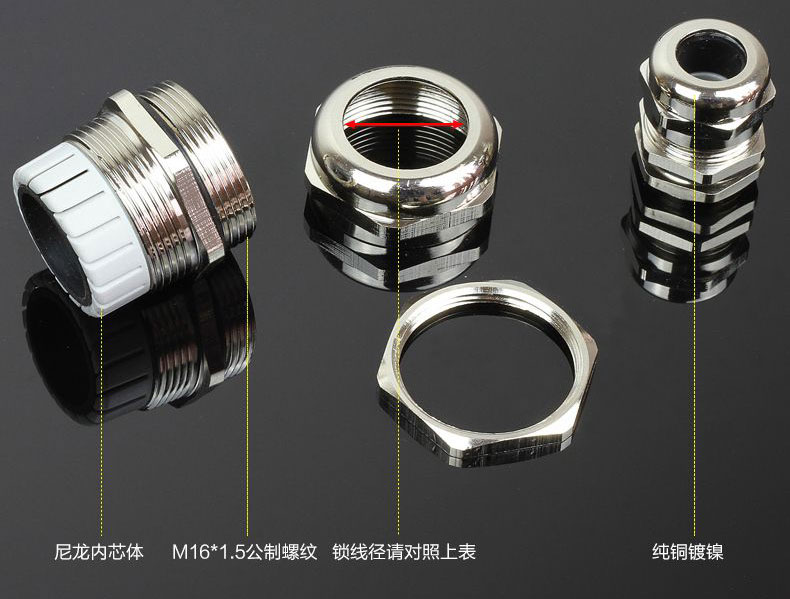

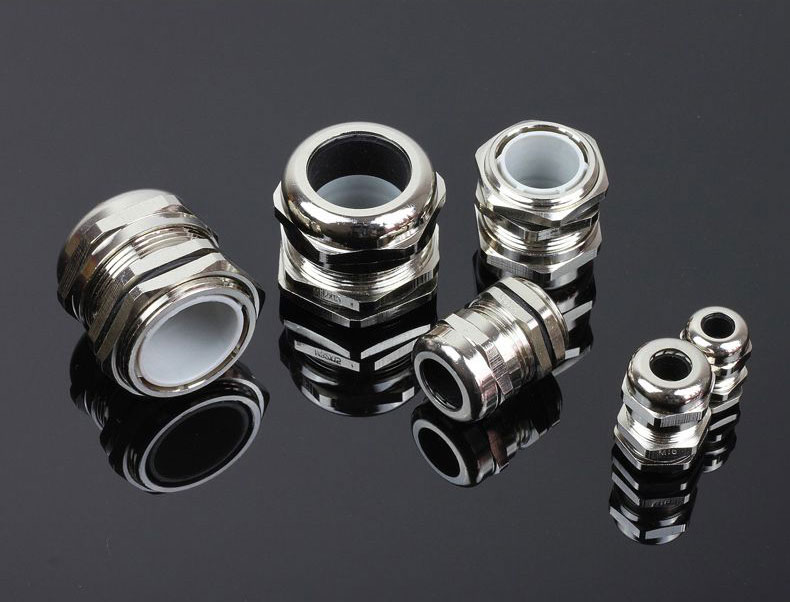

金属接头

通径
d

连接螺纹
A

尾长
L

高
>H

板手
S

电缆外径
mm

订货号

标注

6

M12×1.5

6

19

16

3-6

021106M1215

MB-T-6M12

6

M14×1.5

6

19

16

3-6

021106M1415

MB-T-6M14

8

M16×1.5

7

20

18

4-8

021108M1615

MB-T-8M16

10

M18×1.5

8

22

20

6-10

021110M1815

MB-T-10M18

12

M20×1.5

8

23

22

8-12

021112M2015

MB-T-12M20

14

M22×1.5

9

23

24

10-14

021114M2215

MB-T-14M22

14

M24×1.5

10

23

27

10-14

021114M2415

MB-T-14M24

18

M27×2/M27*1.5

11

28

30

13-18

021118M2720

MB-T-18M27

18

M30×2

11

28

32

13-18

021118M3020

MB-T-18M30

22

M33×2

11

32

36

15-22

021122M3320

MB-T-22M33

25

M36×2

11

32

42

18-25

021125M3620

MB-T-25M36

28

M42×2

12

36

48

22-28

021128M4220

MB-T-28M42

32

M48×2

13

38

52

25-32

021132M3320

MB-T-32M48

38

M54×2

14

38

60

32-38

021138M5620

MB-T-38M56

44

M60×2

14

38

64

37-44

021144M6020

MB-T-44M60

44

M64×2

14

38

68

37-44

021144M6420

MB-T-44M64

6

Pg7

6

19

16

3-6

021106P0007

MB-T-6PG7

8

Pg9

7

19

16

4-8

021108P0009

MB-T-8PG9

10

Pg11

8

22

20

6-10

021110P0011

MB-T-10PG11

12

Pg13.5

8

23

22

8-12

021112P0013

MB-T-12PG13.5

14

Pg16

9

23

24

10-14

021114P0016

MB-T-14PG16

18

Pg21

11

28

30

13-18

021118P0021

MB-T-18PG21

25

Pg29

11

32

42

18-25

021125P0029

MB-T-25PG29

32

Pg36

13

38

52

26-32

021132P0036

MB-T-32PG36

38

Pg42

14

38

60

32-38

021138P0042

MB-T-38PG42

44

Pg48

14

38

64

37-44

021144P0048

MB-T-44PG48

6

G1/4"

6

19

16

3-6

021106G0002

MB-T-G1/4"

8

G3/8"

7

20

18

4-8

021108G0003

MB-T-G3/8"

12

G1/2"

8

23

22

8-12

021112G0004

MB-T-12G1/2"

18

G3/4"

11

28

30

13-18

021118G0006

MB-T-18G3/4"

22

G1"

11

32

36

18-25

021122G0010

MB-T-22G1"

28

G1 1/4"

12

36

48

26-32

021128G0012

MB-T-28G1 1/4"

32

G1 1/2"

13

38

52

32-38

021132G0014

MB-T-32G1 1/2"

44

G2"

14

37

64

37-44

021144G0020

MB-T-44G2"

16

M25×1.5

10

23

28

10-16

021114M2515

MB-T-14M25

22

M32×1.5

11

32

36

15-22

021118M3215

MB-T-22M32

25

M40×1.5

12

32

45

18-25

021122M4015

MB-T-25M40

32

M50×1.5

13

38

56

26-32

021125M5015

MB-T-32M50

44

M63×1.5

14

38

70

37-44

021126M6315

MB-T-44M63
